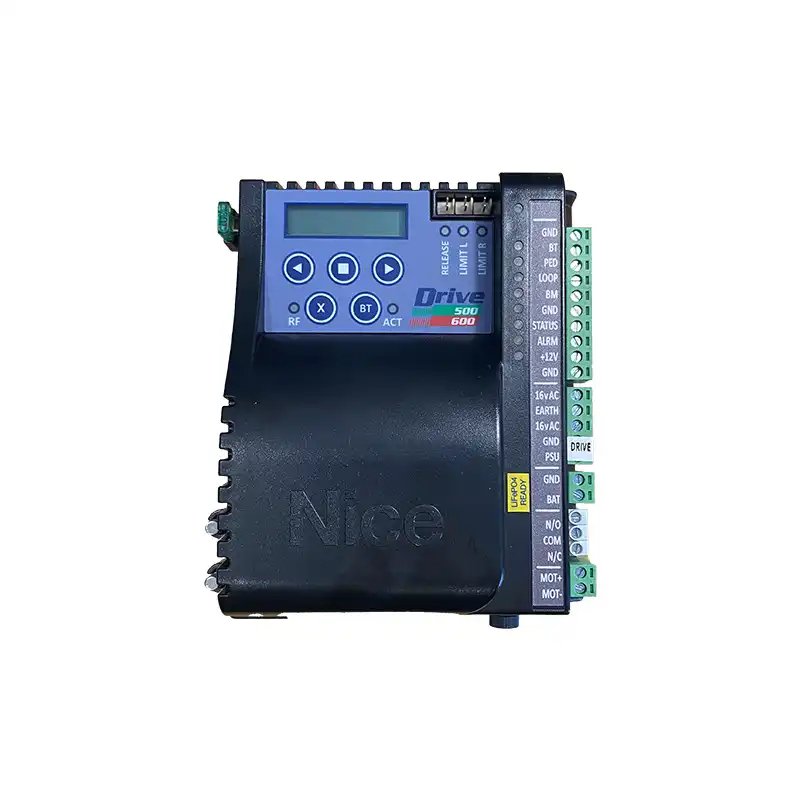

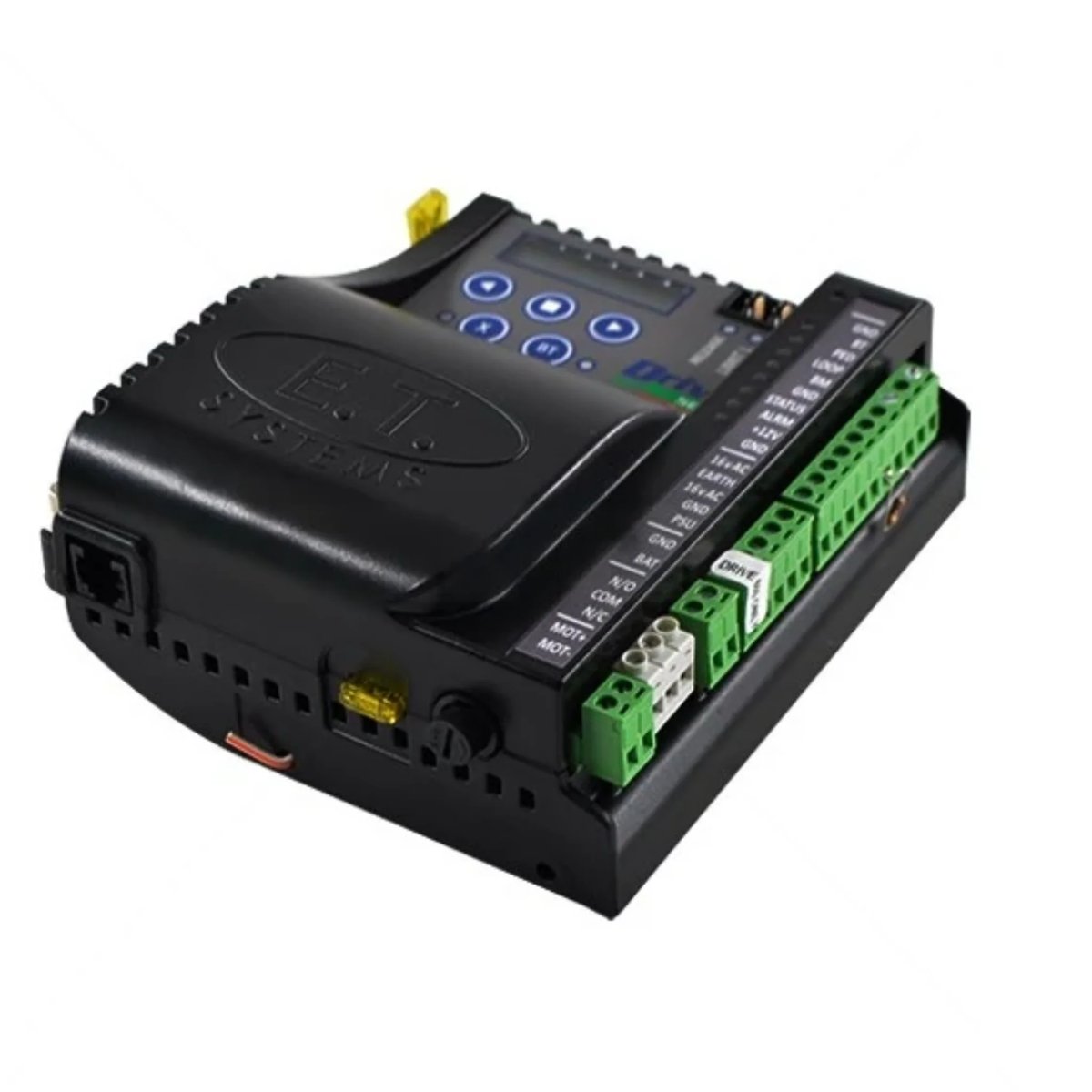

The ET Drive 500/600 PCB Control Card is the main logic/control board used in the ET Drive 500 and ET Drive 600 sliding gate motor systems. It’s the electronic “brain” of the gate operator, responsible for managing motor movement, safety inputs, remote control commands, and all automation logic.
Motor Control:
Drives and regulates the gate motor’s open/close action smoothly, including acceleration, travel, and deceleration.
Safety Input Management:
Interfaces with safety beams/infra-red sensors, edges, and other protection devices to stop or reverse the gate upon detecting obstacles.
Remote Receiver Integration:
Connects to remote control receivers (e.g., ET Nice remotes) to recognize button commands and trigger gate movement.
Limit Switch Handling:
Reads and enforces end-of-travel positions so the gate stops exactly at fully open or fully closed.
Battery & Power Management:
Monitors backup battery connection and ensures proper charging/discharge operation for reliable power backup.
Accessory Outputs:
Provides outputs for warning lights, sirens, and other accessories tied into gate events.
The PCB control card:
Coordinates all gate logic so movements are safe and precise.
Interacts with safety devices to prevent injury or damage.
Ensures reliable response to remotes, buttons, or access control inputs.
Manages battery backup so the gate still operates during outages.
Allows accessory integration for alarms, lights, and automation features.
If the control card is damaged or malfunctioning, the gate may:
Not respond to remotes
Fail to stop or start correctly
Ignore safety sensors
Lose battery backup functionality
Professional Install Recommended: Electronics boards should be installed by trained technicians.
Proper Wiring: Ensure all motor, sensor, battery, remote receiver, and safety accessory connections match the gate motor’s wiring diagram.
Power Off Before Handling: Always disconnect power and battery before replacing or servicing the PCB.
Check Software/Settings: After replacement, review limit travel, safety inputs, and remote programming.
For pricing, availability, and support — including wiring diagrams and installation help in Kenya — visit:
