Product description

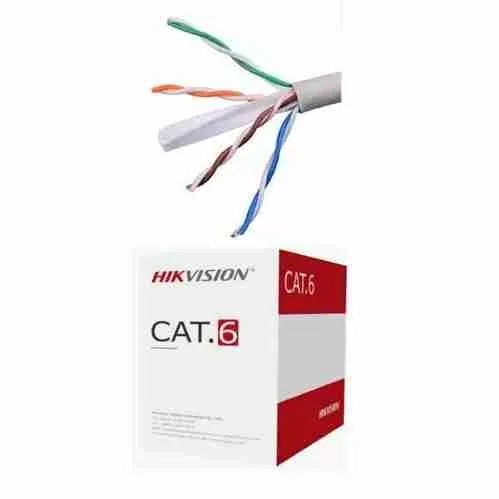

Hikvision DS-1LN6UZC0(O-STD) Orange 305M CAT6 U/UTP Network Cable

The Hikvision DS-1LN6UZC0(O-STD) Orange CAT6 U/UTP Network Cable (305M) is a high-performance Category 6 Ethernet cable designed for professional structured cabling, CCTV systems, and enterprise networking. Built with solid bare copper conductors, it ensures superior conductivity, low resistance, and stable high-speed data transmission for modern network infrastructures.

With its bright orange PVC jacket, this cable is ideal for organized installations, making it easy to identify and manage cables in large projects such as offices, data centers, and surveillance systems.

Key Features

⚡ Gigabit High-Speed Performance

Supports data transmission up to 1Gbps with reliable performance for LAN, streaming, VoIP, and business applications.

📡 250 MHz Bandwidth

Operates at up to 250 MHz frequency, ensuring stable signal quality and reduced latency in demanding network environments.

🔌 Solid Bare Copper Conductors

Constructed with high-quality pure copper, providing better conductivity, reduced signal loss, and improved long-distance performance.

🔄 U/UTP (Unshielded Twisted Pair) Design

Uses 4 twisted pairs to minimize crosstalk and interference while maintaining flexibility and ease of installation.

🔋 Optimized for PoE Applications

Delivers excellent performance under Power over Ethernet (PoE) loads, supporting IP cameras, wireless access points, and VoIP devices.

🌡️ High Temperature & Durability Performance

Maintains stable operation even at temperatures up to 50°C, with strong resistance to mechanical stress during installation.

🧱 Durable PVC Outer Jacket

Features a robust PVC sheath with high tensile and compressive strength, protecting the cable during installation and long-term use.

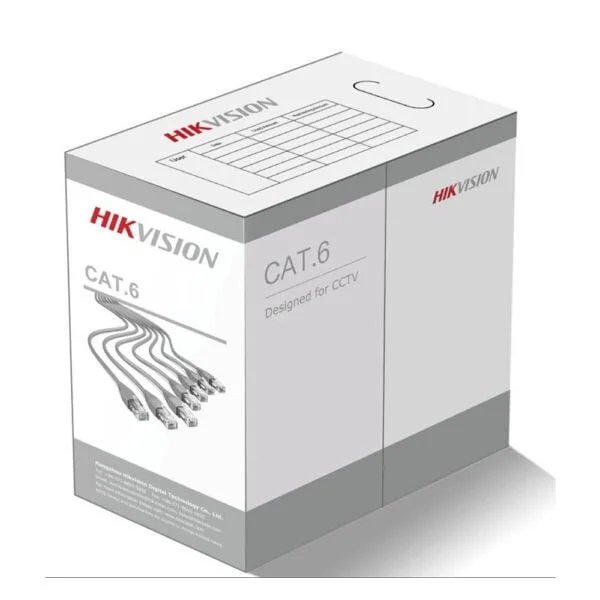

📦 305M Bulk Cable Roll

Comes in a 305-meter (1000 ft) pull box, ideal for large-scale network deployments and structured cabling systems.

Hardware Specifications

• Cable Type: Cat 6 U/UTP (Unshielded Twisted Pair)

• Length: 305 meters (1000 ft)

• Color: Orange

• Conductor: Solid bare copper (≈24 AWG)

• Bandwidth: Up to 250 MHz

• Data Rate: Up to 1 Gbps

• Pairs: 4 twisted pairs

• Insulation: HDPE

• Jacket: PVC (durable, flame-resistant)

• Standards: ANSI/TIA-568.2-D, ISO/IEC 11801, IEC 61156 compliant

• PoE Support: Yes (up to 57V DC load tested)

Ideal Applications

• CCTV and IP surveillance systems

• Structured cabling installations

• Office and enterprise networks

• Data centers and server rooms

• PoE devices (IP cameras, access points)

• Schools, hotels, and commercial buildings

Product Description

The Hikvision DS-1LN6UZC0(O-STD) Orange 305M CAT6 U/UTP Network Cable is a reliable and high-performance networking solution built for modern installations. With pure copper conductors, Gigabit speed support, strong durability, and excellent PoE performance, it is ideal for building efficient and scalable network systems.
